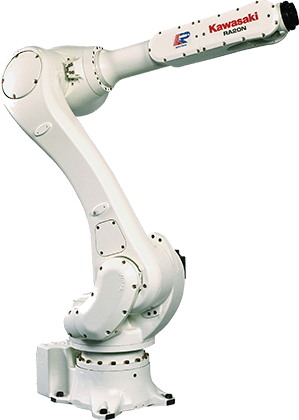

Industrial robot Kawasaki RA020N

RA020N is a 6-axis industrial welding robot from Kawasaki with a payload of 20 kg and a working range of 1725 mm. RA020N is equipped with special software for arc welding, which allows you to quickly and easily program the technological process. The adaptive welding function allows you to adjust the robot's position, stroke and speed during the welding process. The flexibility and high accuracy of Kawasaki robots ensure uninterrupted quality and maximum productivity, which in turn makes them an ideal solution for arc welding automation.

Features:

  • Compact design

  • High speed and positioning accuracy

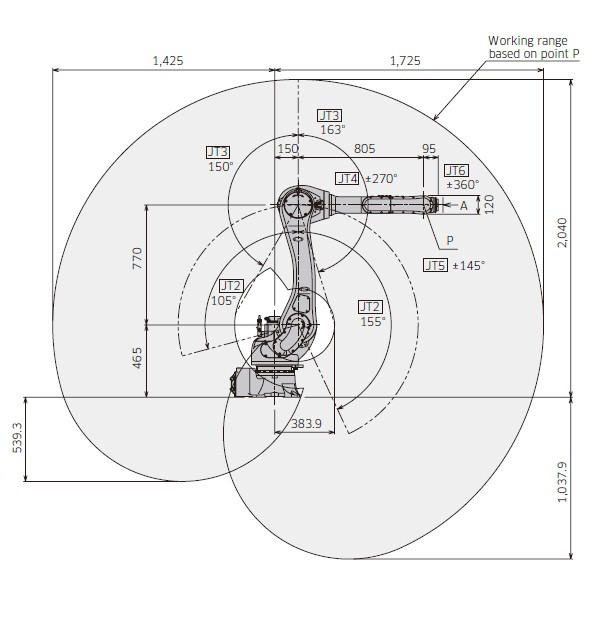

  • Working range 1725 mm

  • Load capacity 20 kg

Manufacturer
Reach
1725 mm
Payload
20 kg
Model
RA020N
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model RA020N
Country Japan
Reach, mm 1725
Axes 6
Payload, kg 20
Repeatability mm, mm ± 0.04
Weight kg, kg 230
Mounting position Ceiling, Floor
Controller E01
Type Articulated robot
Motion range, °
J1 ± 180
J2 + 155/-105
J3 +150/-163
J4 ± 270
J5 ± 145
J6 ± 360
Maximum speed, °/s
J1 190
J2 205
J3 210
J4 400
J5 360
J6 610
Protection
Wrist IP67
Arm IP65
