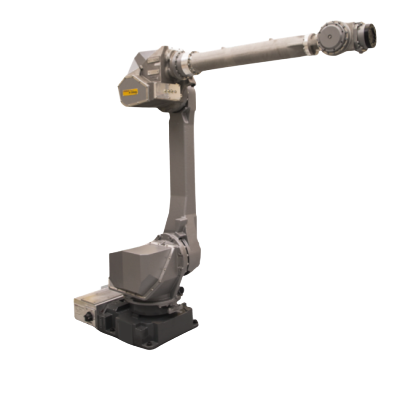

Industrial Robot FANUC P-350iA/45
Designed for versatility and a wide range of applications, the P-350iA is a heavy-duty paint robot with a 45 kg wrist capacity. It is completely airtight thanks to PTFE or EPDM gaskets on all covers.
Features:
High precision
Load capacity 45 kg
Working range 2606 mm
- Manufacturer
-
- Reach
- 2606 mm
- Payload
- 45 kg
- Model
- P-350iA/45
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | P-350iA/45 |
| Country | Japan |
| Reach, mm | 2606 |
| Axes | 6 |
| Payload, kg | 45 |
| Repeatability mm, mm | ± 0.1 |
| Weight kg, kg | 590 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 225 |
| J3 | 440 |
| J4 | 800 |
| J5 | 250 |
| J6 | 800 |
| Maximum speed, °/s | |
|---|---|
| J1 | 180 |
| J2 | 180 |
| J3 | 180 |
| J4 | 250 |
| J5 | 250 |
| J6 | 300 |
