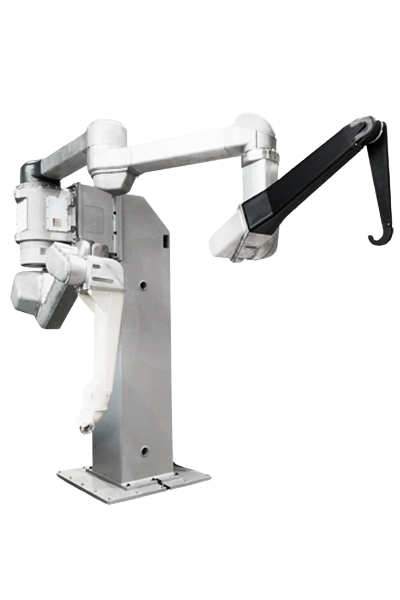

Industrial Robot FANUC P-1000iA
The P-1000iA is a unique painting robot with seven integrated axes. Its optimally positioned arm is suitable for a wide range of interior and exterior painting applications. The balanced arm length provides excellent near and far reach, and combined with its payload, the robot supports a wide range of rotary nozzles and spray guns.
Features:
High speed
Load capacity 15 kg
Working range 2848 mm
- Manufacturer
-
- Reach
- 2848 mm
- Payload
- 15 kg
- Model
- P-1000iA
- Axes
- 7
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | P-1000iA |
| Country | Japan |
| Reach, mm | 2848 |
| Axes | 7 |
| Payload, kg | 15 |
| Repeatability mm, mm | ± 0.5 |
| Weight kg, kg | 700 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | ± 110 |
| J2 | + 85/- 65 |
| J3 | + 120/-120 |
| J4 | + 90/- 70 |
| J5 | ± 720 |
| J6 | ± 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 125 |
| J2 | 125 |
| J3 | 120 |
| J4 | 120 |
| J5 | 200 |
| J6 | 200 |
| J7 | 200 |
