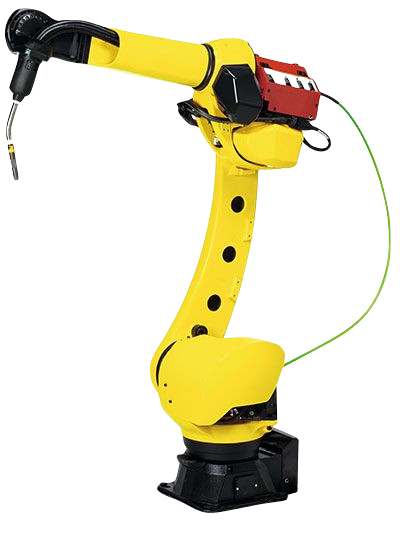

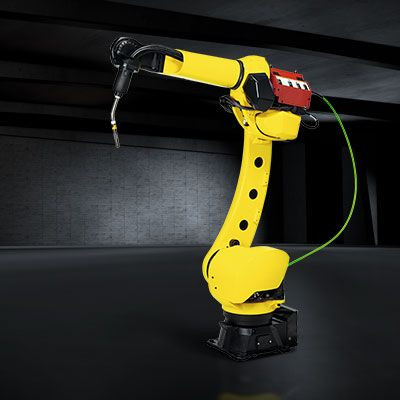

Industrial Robot FANUC ARC Mate 120iD

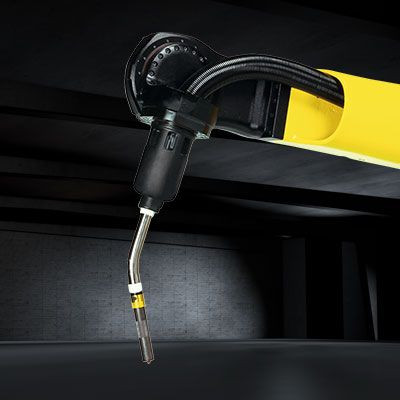

FANUC ARC Mate 120iD is a versatile welding robot with a compact design and slim body, making it ideal for welding in tight spaces. The 120iD is fast and rigid, and the welding robot can almost reach its base.

Features:

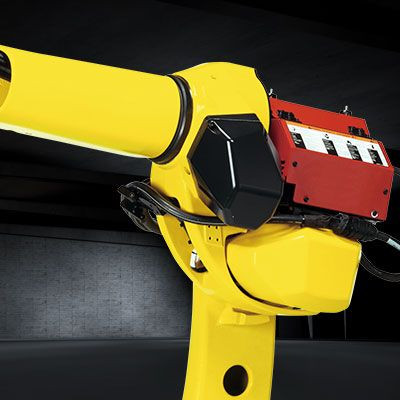

Hollow and compact design
Large radius of action 1831 mm
Ability to work in limited space;
High repeatability ± 0.02

Manufacturer

Reach: 1831 mm
Payload: 25 kg

Model: AM-120iD
Axes: 6

Solutions

Welding

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	AM-120iD
Reach, mm	1831
Axes	6

Payload, kg	25
Repeatability mm, mm	± 0.02
Weight kg, kg	250
Controller	R-30iB Plus

Motion range, °
J1	340 (370)
J2	260
J3	458
J4	400
J5	280 (360)
J6	540 (900)

Maximum speed, °/s
J1	210
J2	210
J3	265
J4	420
J5	420
J6	720
