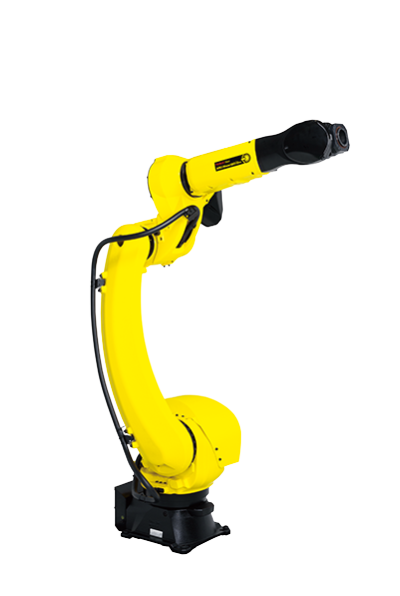

Industrial Robot FANUC ARC Mate 120iD/35
Specially designed for welding applications. This model offers superior spindle speed and the highest accuracy in its class. With a 35 kg payload, this model is capable of handling heavy parts and welding equipment.
Features:
High precision
Load capacity 35 kg
Working range 1831 mm
- Manufacturer
-
- Reach
- 1831 mm
- Payload
- 35 kg
- Model
- ARC Mate 120iD/35
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | ARC Mate 120iD/35 |
| Country | Japan |
| Reach, mm | 1831 |
| Axes | 6 |
| Payload, kg | 35 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 250 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 180 |
| J2 | 180 |
| J3 | 200 |
| J4 | 350 |
| J5 | 350 |
| J6 | 400 |
| Maximum speed, °/s | |
|---|---|
| J1 | 370 |
| J2 | 260 |
| J3 | 458 |
| J4 | 400 |
| J5 | 360 |
| J6 | 900 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
