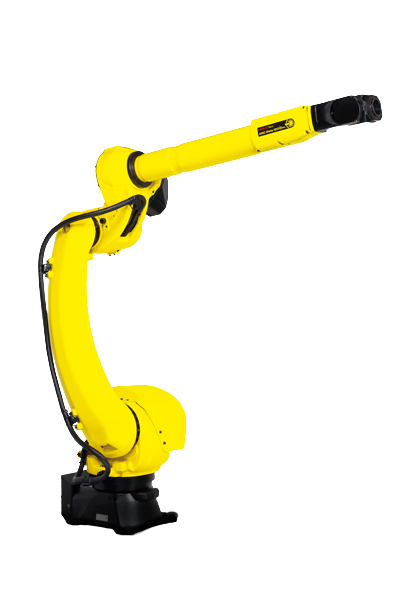

Industrial Robot FANUC ARC Mate 120iD/12L
Specially designed for welding applications, this model offers outstanding axis speeds and the highest accuracy in its class. The highly flexible robot can weld large parts thanks to its very long horizontal travel. To further maximize flexibility and open up new application possibilities, it can carry additional tools and welding torches weighing up to 12 kg.
- Compact design
- Hollow wrist
- High productivity and accuracy
- Wide working range
- Manufacturer
-
- Reach
- 2272 mm
- Payload
- 12 kg
- Model
- ARC Mate 120iD/12L
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | ARC Mate 120iD/12L |
| Country | Japan |
| Reach, mm | 2272 |
| Axes | 6 |
| Payload, kg | 12 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 250 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (370) |
| J2 | 260 |
| J3 | 475 |
| J4 | 400 |
| J5 | 360 |
| J6 | 900 |
| Maximum speed, °/s | |
|---|---|
| J1 | 210 |
| J2 | 210 |
| J3 | 265 |
| J4 | 420 |
| J5 | 450 |
| J6 | 720 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
