Industrial Robot FANUC ARC Mate 100iD/10L

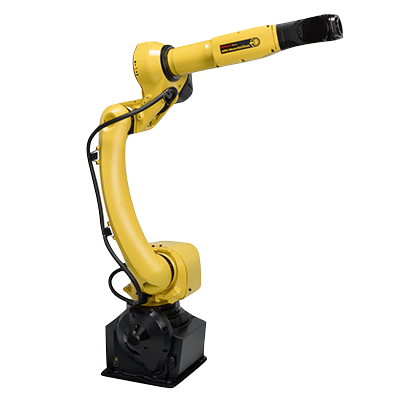

ARC Mate 100iD/10L 6-axis industrial arc welding robot from Fanuc. The 100iD/10L is ideal for welding in tight spaces, thanks to its compact design, hollow wrist and various mounting options, has a reach of 1636 mm and a payload of 10 kg.

Features

Compact design and hollow wrist
High performance and precision
Large working range of 1636 mm
Ability to work in limited spaces

Manufacturer

Reach: 1636 mm
Payload: 10 kg

Model: AM-100iD/10L
Axes: 6

Solutions

Welding

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	AM-100iD/10L
Reach, mm	1636
Axes	6

Payload, kg	10
Repeatability mm, mm	± 0.03
Weight kg, kg	150
Controller	R-30iB Plus

Motion range, °
J1	340 (370)
J2	235
J3	455
J4	380
J5	360
J6	900

Maximum speed, °/s
J1	260
J2	240
J3	260
J4	430
J5	450
J6	720
