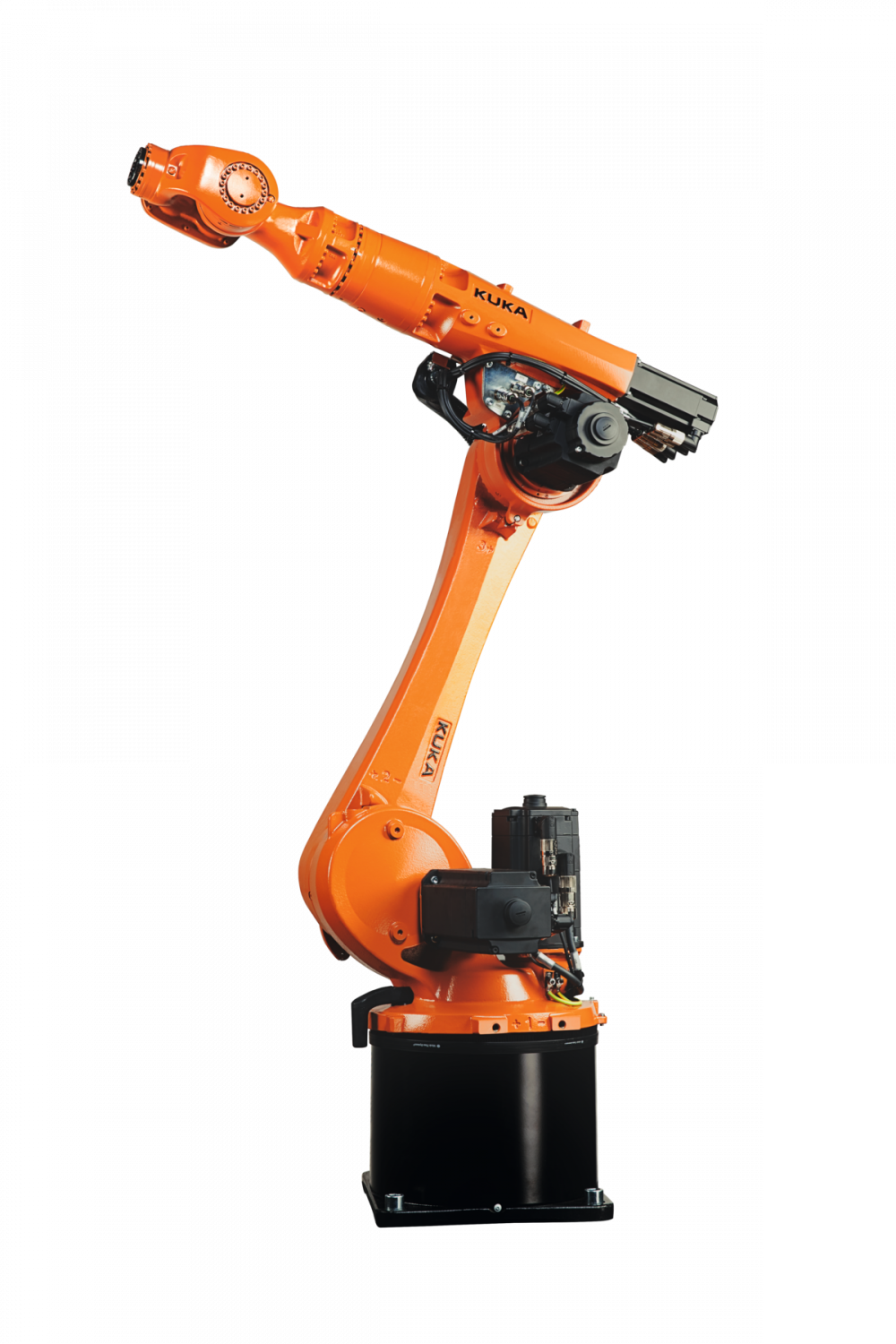

Industrial robot KUKA KR 16 R1610-2
KR 16 R1610-2 is a 6-axis industrial robot with a structure and hollow wrist from the KR CYBERTECH series by Kuka. It is capable of providing maximum productivity due to its high speed and precision positioning, with minimal maintenance and low costs. KR 16 R1610-2 is ideal for working in limited space and for tasks requiring manipulation of loads up to 16 kg, such as assembly, packaging, and welding.
- Hollow structure
- High speed
- Ability to work in confined spaces
- Manufacturer
- Reach
- 1612 mm
- Payload
- 16 kg
- Model
- KR 16 R1610-2
- Axes
- 6
- Solutions
Specifications
Manufacturer | KUKA |
Model | KR 16 R1610-2 |
Reach, mm | 1612 |
Axes | 6 |
Payload, kg | 16 |
Repeatability mm, mm | ± 0.04 |
Weight kg, kg | 255 |
Controller | KUKA KR C4 Controller |
Motion range, ° | |
---|---|
J1 | ±185 |
J2 | -185/65 |
J3 | -138/175 |
J4 | ±350 |
J5 | ±130 |
J6 | ±350 |
Maximum speed, °/s | |
---|---|
J1 | 200 |
J2 | 175 |
J3 | 190 |
J4 | 430 |
J5 | 430 |
J6 | 630 |
